The range of electronic flow control valves are driven by a high accuracy stepper motor to ensure maximum precision for control by either open or closed loop means. The valves can be configured for manual/joystick input or to specific output speed/positional control. |
| Part No | Description | Price | RFQ |
| 223ARRW | 160 Bar Max operating Pressure, Eletronic Flow Control, DN3,Stepper Motor Control, Water | POA | |
| 223BRRW | 160 Bar Max operating Pressure ,Eletronic Flow Control,DN6,Stepper Motor Control, Water | POA | |
| 2M23ARRW | 160 Bar Max operating Pressure, 160 Bar Max operating Pressure, Manifold, Eletronic Flow Control,DN3,Stepper Motor Control, Water | POA | |
| 2M23BRRW | 160 Bar Max operating Pressure , Manifold,Eletronic Flow Control,DN6,Stepper Motor Control, Water | POA |
Closed loop feedback via output transducers is also possible with the use of an ST5 advanced micro-step programmable controller which is available with a 48V stable power supply if required. Additional output can also be offered for fail-safe configurations should such a function be necessary.
A Directional Flow Control Valve ,due to the very low viscosity of the fluid, the maximum orifice size (i.e. minimum pressure drop) for each application must be specified. The valve is therefore offered in either a 0.5-10L or a 5-30L port configuration to ensure maximum accuracy is gained across the full flow range. For fail safe function an additional N/C 2/2 valve is adopted in the P Line. Available from 1 to 100l/min. See pressure control valve data sheet for more information. Additional on/off valves will need to be fitted if fail safes are required.
| Max Inlet Pressure | 200 bar |
| Operating Pressure Range | 0 to 160 bar |
| Flow Range | 0-30 L/min |
| Feed Gallery Diameter | 3mm & 6mm |
| Porting | BSP (Parallel)& Manifold |
| Construction Materials | 316 Stainless Steel, Ceramic & Polymer |
| Motor Operation | 48V DC |
| Electrical Connections | Flying lead or Plug |
| Current | 125 mA |
|
DN3
(1-10 L/min)
|
DN6
(3-30 L/min)
|
|
|

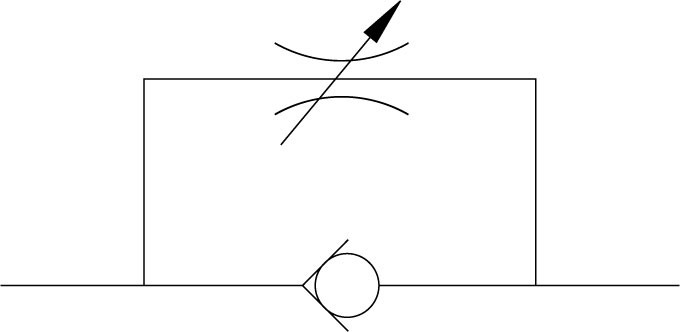

4/3 Valve Centre Position Closed P AB&T Connected, Standard Build
electronic flow control |
223ARRW
|
223BRRW
|
|
4/3 Valve Centre Position Closed P AB&T Connected, Manifold Build
electronic flow control |
2M23ARRW
|
2M23BRRW
|
Note: Porting orientation changes with spring condition
PDF or Portable Document Files can be opened in many readers such as Chrome or Adobe PDF Reader.
STEP files can be used in many 3d packages, such as Solidworks, Autocad 3d or even Blender.
