The Janus range of pumps are based on the axial piston principle which is both light and compact relative to their volumetric displacement, available from 0.8cc/rev to 625cc/rev.

Up to 9 pistons per pump ensure very small pressure ripples removing the need for accumulators. As a result of employing advanced materials, high velocity and loaded sliding surfaces can operate effectively with water as their only coolant/lubricant.

The potential for cross contamination of the system fluid or the lubricating oil is removed.

The pumps are manufactured in 316 or duplex materials making them highly resistant to corrosion and ideal for reverse osmosis applications. Accurate flow metering is simply achieved with the control of the output shaft speed.

Janus axial piston motors are based on the axial piston principle for high speed applications or with our range of gearboxes for low speed high torque systems.

The motors are available in both fixed and variable displacement configurations.

Pumps Configurator

Unit Type

Displacement (cc/rev )

Fluid

Shaft Seal


**P60 &P180 Only
Your Pump Ordering Code

Pumps Configurator

Unit Type
Displacement (cc/rev )
Fluid
Shaft Seal


**P60 &P180 Only
Your Pump Ordering Code

https://www.waterhydraulics.co.uk/wp-content/uploads/2019/10/P1-PC100-12WMS-1-300x224.jpg
P1
Displacement cc/rev 0.8 – 1.2
Max. RPM 2000
Max input power 0.55 kw
https://www.waterhydraulics.co.uk/wp-content/uploads/2019/10/P3-1-300x224.jpg
P3
Displacement cc/rev 3.0 – 3.0
Max. RPM 2000
Max input power 1.75 kw
https://www.waterhydraulics.co.uk/wp-content/uploads/2019/10/M6-Motor-1-300x224.jpg

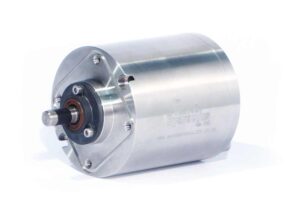

P6
Displacement cc/rev 4.6 – 6.0
Max. RPM 2000
Max input power 3.8 kw
https://www.waterhydraulics.co.uk/wp-content/uploads/2019/10/PB160-80SMS-300x222.jpg
P15
Displacement cc/rev 12.0 – 19.0
Max. RPM 2000
Max input power 11 kw
https://www.waterhydraulics.co.uk/wp-content/uploads/2019/10/PB160-80SMS-300x222.jpg
P30
Displacement cc/rev 23.0 – 35.0
Max. RPM 2000
Max input power 19.5 kw
https://www.waterhydraulics.co.uk/wp-content/uploads/2019/10/PB160-80SMS-300x222.jpg
P60
Displacement cc/rev 51.0 – 70.3
Max. RPM 2000
Max input power 42 kw
https://www.waterhydraulics.co.uk/wp-content/uploads/2019/10/PB160-80SMS-300x222.jpg
P180
Displacement cc/rev 135.0 – 225.0
Max. RPM 2000
Max input power 114 kw
