The pressure compensated flow control valve is designed to control the flow rate of tap drinking water in a hydraulic system.

Part No Description Price RFQ
216AXSW Up to 160 Bar, Pressure Compensated Flow Control, DN3, Pressure actuation, Spring Return Only, Tap Water  POA
216BXSW

Up to 160 Bar, Pressure Compensated Flow Control, DN6, Pressure actuation, Spring Return Only, Tap Water

 POA

Fully adjustable between the specified ranges, the output flow can be regulated and maintained at a constant level irrespective of the output working pressure. The constant rate can be adjusted by allan key then loaded to prevent none desired alteration. The reverse flow gives a slightly restrictive orifice but vertically free for one way control. See performance graph for characteristics.

DN3
DN6
Operating Pressure Range
5-160 Bar
5-160 Bar
Maximum Cv Value in flow
control direction
0.2
0.7
Feed Gallery Diameter
3mm
6mm
Porting
1/4” BSPP
1/4” BSPP
Construction Materials
316 Stainless Steel
Polymer
316 Stainless Steel
Polymer
Number of turns
Fully open to fully closed
5
6
Media
Tap Water
Tap Water
Flow Range
0.5—5 L/min
3—30 L/min
DN3
DN6

216AXSW

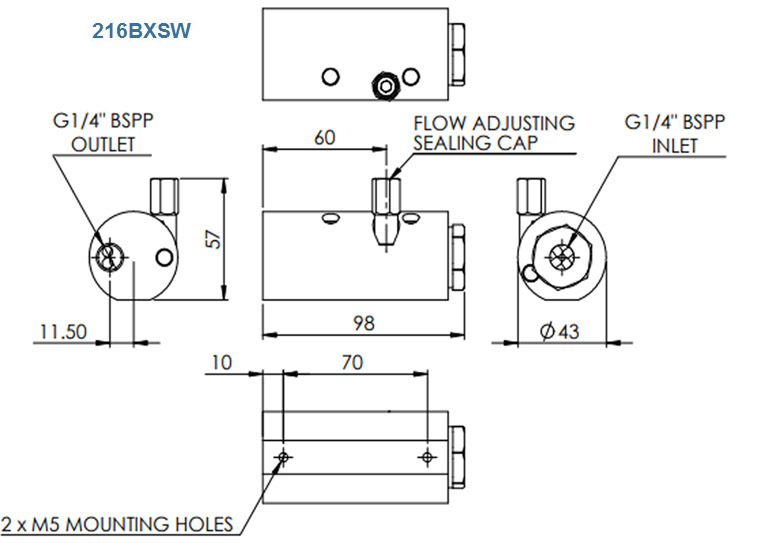

216BXSW
Flow-Characteristics-DN3-pc
Flow-Characteristics-DN6-pc

PDF or Portable Document Files can be opened in many readers such as Chrome or Adobe PDF Reader.

STEP files can be used in many 3d packages, such as Solidworks,  Autocad 3d or even Blender.
